What is Gridfinity Builder?
Gridfinity Builder is a browser-based parametric CAD tool for designing, previewing, and exporting 3D-printable Gridfinity storage layouts.
Built for makers, 3D printing enthusiasts, and anyone who wants to organize their workspace with the Gridfinity modular storage system.
Gridfinity is an open-source modular storage system created by Zack Freedman. This tool helps you design custom bin layouts and download 3MF and STL geometry for your slicer.
Why Gridfinity Builder?
- No installation — runs entirely in the browser (or install as PWA for offline use)

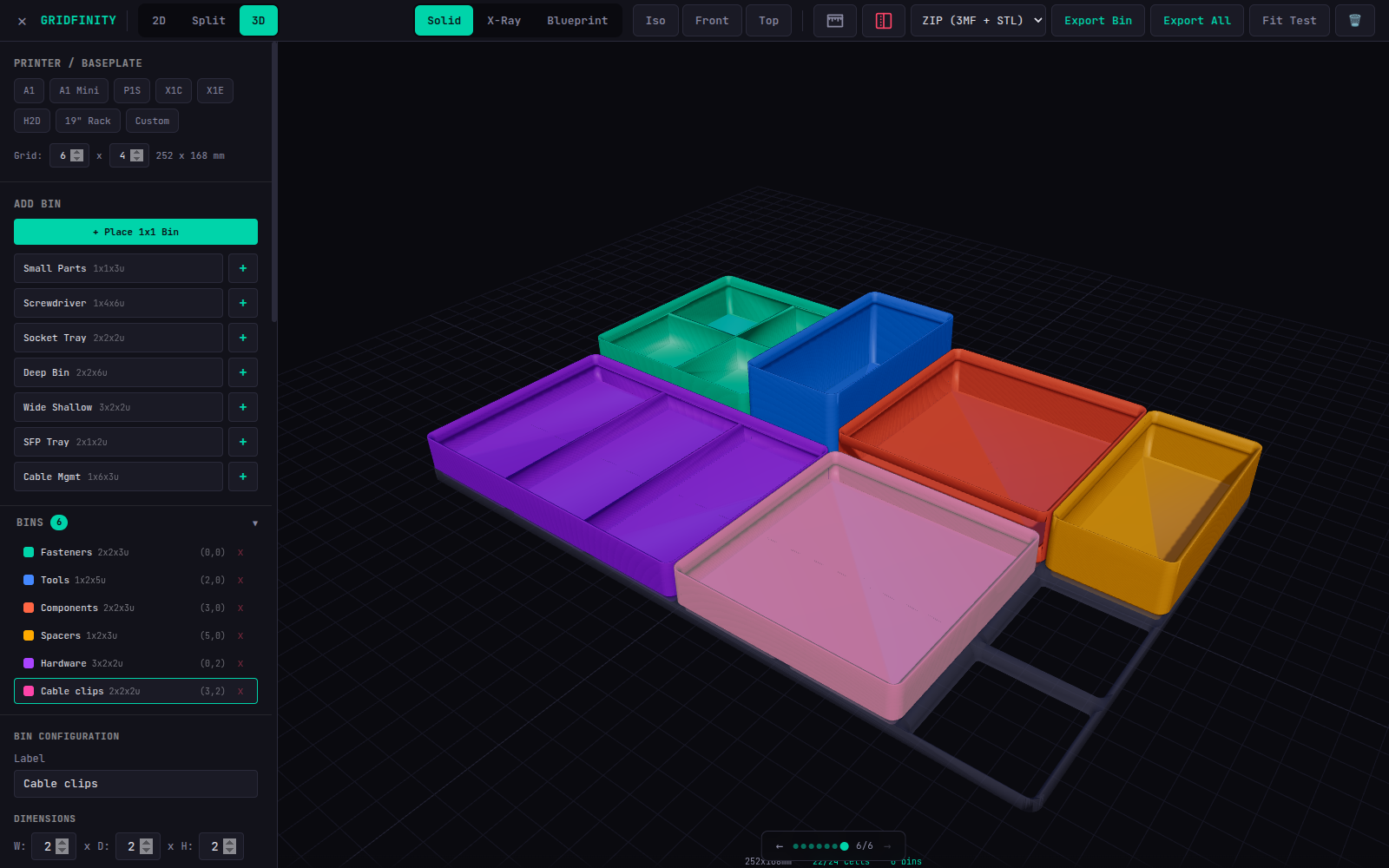

- Real-time 3D preview — see your bins as you design them
- Mating geometry — follows the community Gridfinity drawing, with dimensional tests and a printable fit test
- ZIP, 3MF and STL export — a complete 3MF plus one STL per part, or direct 3MF; automated mesh round-trip checks do not replace slicer-specific validation
- Local geometry generation — preview and export run in the browser; optional GitHub Gist sharing uploads a layout only when requested
Tech Stack
| Technology | Purpose |
|---|---|
| React 18 + TypeScript | UI framework |
| Vite 8 | Application build tool |
| Three.js | 3D rendering |
| Manifold 3D (WASM) | CSG geometry engine |
| Zustand | State management |
| Tailwind CSS 4 | Styling |
| JSZip | 3MF and download ZIP packaging |
| Workbox (PWA) | Offline caching |
See export contents and validation and dimensional reference before printing.
